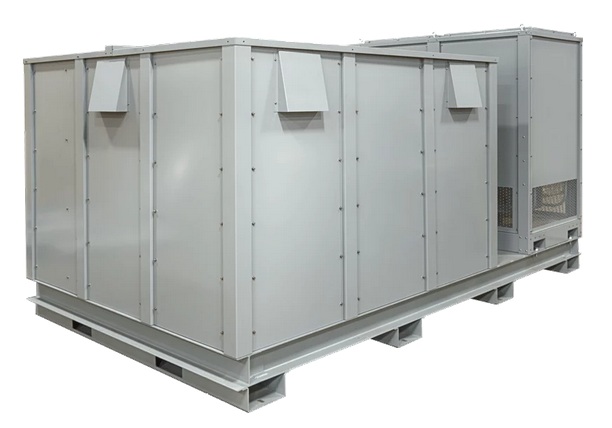

The Trystar RL Series Resistive/Reactive Load Bank is designed for testing large generators, switchgear, transformers, and UPS systems at 0.8 pf.
0.8 pf CAPACITY OPTIONS
- 300 kVA – 240 kW – 180 kVAR
- 500 kVA – 400 kW – 300 kVAR
- 750 kVA – 600 kW – 450 kVAR
- 1250 kVA – 1000 kW – 750 kVAR
- 1500 kVA – 1200 kW – 900 kVAR
- 1875 kVA – 1500 kW – 1125 kVAR
FEATURES
- Load Capacity: See above.
- Voltage: 480V 3PH 60Hz.
- Load Step Resolution: 3.75kVAR / 5kW.
- Controls: Remote manual toggle switch controller with illuminated Main Power On/Off switch, illuminated Blower Start/Stop Switch, Master Load On/Off switch, individual Load Step Switches, and emergency stop push button.
- Control Power: Specify from load or external source.
- Cooling Power: Specify from load or external source.

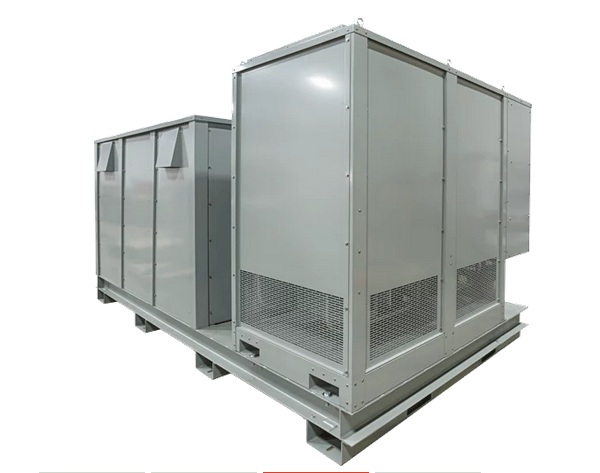

- Cooling System: High performance blower(s) with side intake and vertical discharge.
- Safety Features: Blower On, Motor Overload, Air-Flow Failure, and Over-temperature circuits disable all load steps during a fault condition with operator visual indicators, while the Load Dump circuit provides the operator visual indication if all load steps have been removed.
- Load Connections: Plated Bus Bar for customer connections.

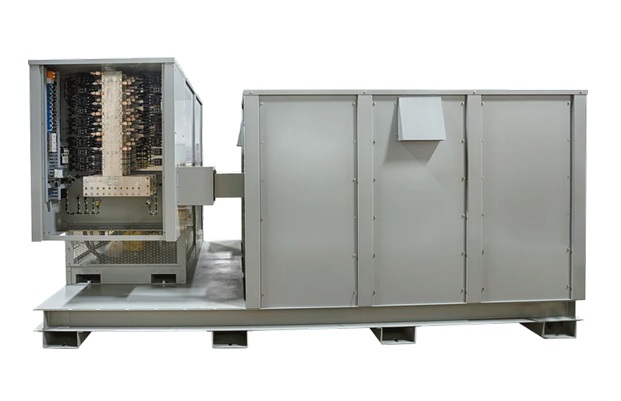

- Enclosure: The RL Series enclosures are constructed of galvanized steel with the highest quality durable powder-coat paint finish, and external stainless steel fasteners. All power, motor, and control connections are provided in a sealed thermostatically controlled heated compartment to limit any harmful effects of moisture and condensation. The enclosure is stationary-type, outdoor construction, to be installed and operated on a floor, roof-top, or concrete pad. Forklift channels are provided within the base for ease of lifting and handling during installation.
PRODUCT DOWNLOAD
OPTION
- 600VAC 3PH 60Hz.
- Digital Meter with Data Logging Capabilities
