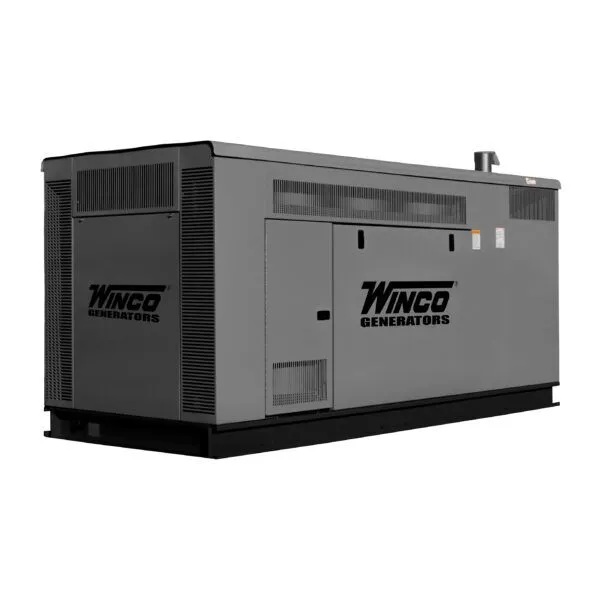

The WINCO PSS100 packaged standby system is an 1800 RPM emergency standby generator designed to automatically start and quickly provide up to 100kW of backup power. Powered by an industrial 5.7L V8 GM engine, the PSS100 is both reliable and fuel efficient. The industrial Stamford generator end produces exceptionally clean and stable power.
| Model | Phase, Voltage, Power Factor |
LP Gas kW, kVA, Amps |
Natural Gas kW, kVA, Amps |
| PSS100-3 | 1 Phase, 120/240V, 1.0pf |
80kW, 80kVA, 333A |
100kW, 100kVA, 416A |
| PSS100-4 | 3 Phase, 120/208V, 0.8pf |
80kW, 100kVA, 278A |
100kW, 125kVA, 347A |
| PSS100-17 | 3 Phase, 120/240V, 0.8pf |
80kW, 100kVA, 240A |
100kW, 125kVA, 300A |
| PSS100-18 | 3 Phase, 277/480V, 0.8pf |
80kW, 100kVA, 120A |
100kW, 125kVA, 150A |
FEATURES
- GM PSI 5.7L 8-cylinder 1800rpm liquid-cooled engine with low oil protection.
- EPA approved.
- Stamford generator end available in all common voltages.
- Automatic Voltage Regulation of +/-1%.
- Main Circuit Breaker.
- 5 Amp Battery Charger.
- 120V Block Heater with thermostat.
- DSE 7310 MKII digital controller offers user-friendly displays, engine and gen-set protections, communication options, alarms, engine exerciser, event log, and more.
- Galvanealed Steel Weather Enclosure.
- 100% load tested.
- UL2200 / CSA Approved.
DOWNLOADS
OPTIONS
- Open Skid (no enclosure)
- Vapor Fuel Strainer (1-1/4″)
- High-Low Gas Pressure Switch
- LP Liquid Withdrawal (not UL certified)
- 10A Battery Charger Upgrade with Fail Contact
- Generator Strip Heater
- Battery Heater
- Group 24 650 CCA Battery
- Permanent Magnet Generator (PMG) MX321 Upgrade (0.5% regulation)
- NFPA 110 Level 1 Compliant Upgrade
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GPS Antenna
- DSE8610 Controller Upgrade
- Maintenance Kit
