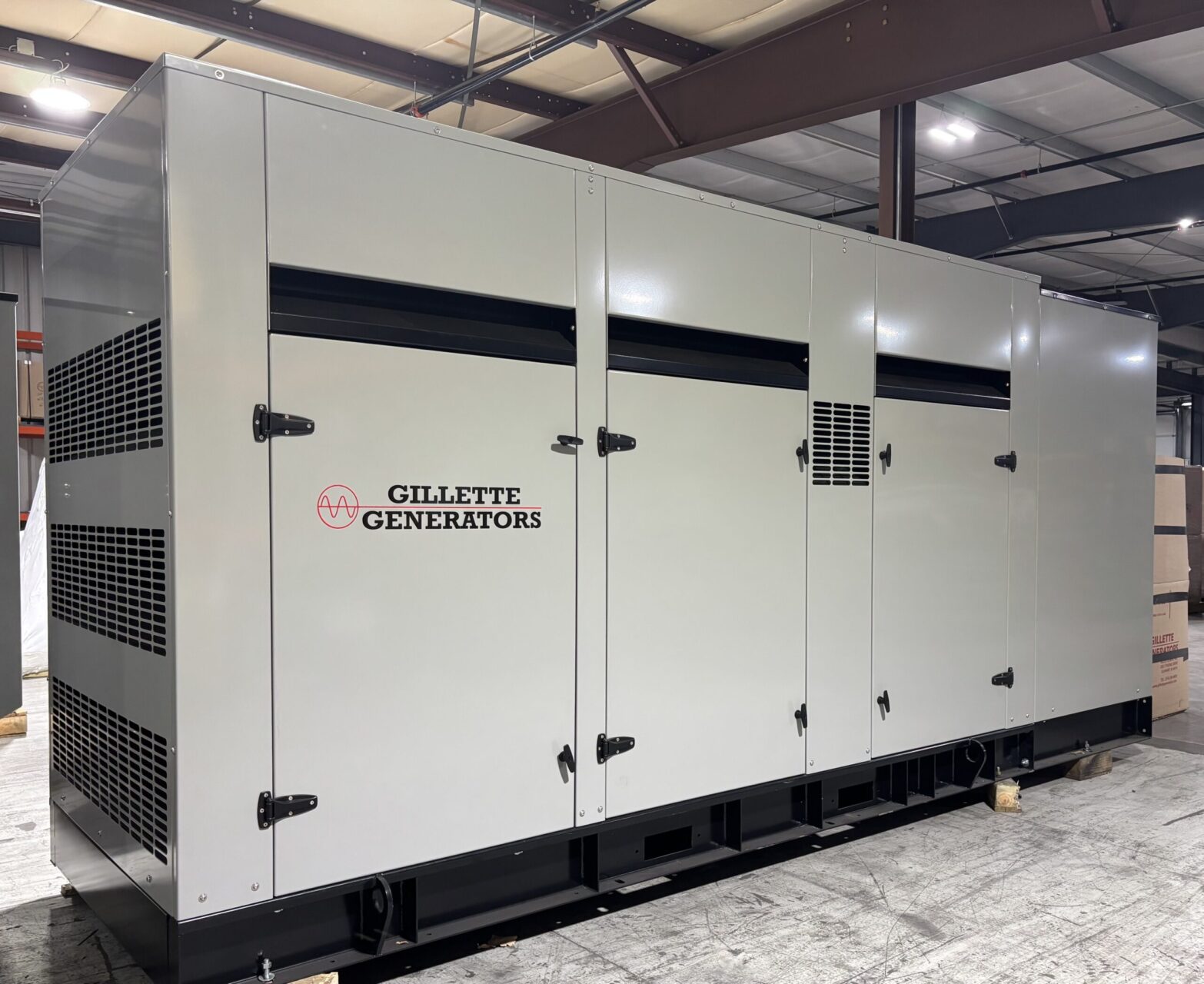

The Gillette SP-3000P Standby Generator offers a PSI engine, three phase voltages, and up to 300 kW of power using Natural Gas or 165 kW of power using LP. Engineered for reliability, durability, and performance.
| Model | Phase, Voltage, Power Factor |
LP Gas kW, kVA, Amps |
Natural Gas kW, kVA, Amps |
| SP-3000P-3-2 | 3 Phase, 120/208V, 0.8pf |
165kW, 206kVA, 582A |
300kW, 375kVA, 1040A |
| SP-3000P-3-3 | 3 Phase, 120/240V, 0.8pf |
165kW, 206kVA, 505A |
300kW, 375kVA, 902A |
| SP-3000P-3-4 | 3 Phase, 277/480V, 0.8pf |
165kW, 206kVA, 251A |
300kW, 375kVA, 451A |
| SP-3000P-3-16 | 3 Phase, 346/600V, 0.8pf |
165kW, 206kVA, 202A |
300kW, 375kVA, 360A |
FEATURES
- All generator sets are USA prototype built and thoroughly tested. Production models are USA factory built and 100% load tested.
- PSI engine and Stamford Electric generator end.
- Deep Sea 7420 digital controller allows programming to basic engine functions in the field. Controller has stop-manual-auto mode and engine shutdowns, signaled by full text LCD indicators. Includes power monitoring, event logging, and hour meter.
- Solid state, frequency compensated voltage regulation is standard.
- Electronic engine governor for precise isochronous frequency regulation..
- Heavy-duty Circuit Breaker is standard on all gen-sets.
- Battery tray, cables, straps, and charger included.
- Meets NFPA-110 Level 1 when equipped with the necessary accessories and installed per NFPA standards.
- UL-1446 and UL-2200 Certified.
ENCLOSURE OPTIONS
- OPEN STYLE – No Enclosure: Gen-set must be placed within a weather protected area, uninhabited by humans or animals, with proper ventilation. Silencer and flexible exhaust hose are not supplied , as installation requirements are not known. However, these two items are available as optional equipment.
- LEVEL 2 – Aluminum Housing: Full weather protection and superior sound attenuation for specific low noise applications. Critical grade silencer is standard. Average sound level of 80 dBA at 23 ft.
| Enclosure | Dimensions (inches) L x W x H |
Three Phase Weight (lbs) |
| Open Style | 152 x 72 x 80 | 8525 |
| Level 2 | 200 x 72 x 94 | 11,025 |
DOWNLOADS
OPTIONS
- Engine Coolant Heater
- Enclosure Space Heater
- Starting Battery Heater Blankets
- 10A Battery Charger Upgrade
- 20A Battery Charger Upgrade
- Emergency Stop Switch – mounted in a NEMA 4X small enclosure, UL Listed, Suitable for remote locations, Complies with NFPA-110 requirements.
- Emergency Stop Switch – mounted in a “Break Glass Station” NEMA 3R small enclosure, UL Listed, Suitable for remote locations, Complies with NFPA-110 requirements
- NFPA-110 Compliance Package: Includes 16 lamp dual (8) display remote annunciators (choice of flush-mount or surface-mount) and a heavy-duty 10A 12/24 VDC battery charger
- External Permanent Magnet Generator (PMG) for improved motor starting capabilities and un-interrupted excitation power
- External Permanent Magnet Generator (PMG) with Digital Voltage Regulator (DVR) for improved motor starting capabilities, un-interrupted excitation power, and RMS sensing
- Critical Grade Silencer Upgrade for average sound level of 92 dBA at 23 ft with an Open Gen-Set (standard with Level 2 Enclosure)
- Hospital Grade Silencer Upgrade for average sound level of 75 dBA at 23 ft in a Level 2 Enclosure
- R7 Foam Insulation (4-5 dBA sound reduction)
- Paralleling Package
- 2″ Felxible Dry Fuel Line
- Two 1000 CCA 12VDC Starting Batteries
- Stainless Steel Enclosure
- Generator Enclosure Lights
- Liquid Containment Pan – installed under frame base
- Spring Vibration Mounts
- Motorized Dampers
- Isolator Mounting Pads
- Controller Upgrades and Alarm Interfaces
- Asco 300 Automatic Transfer Switch (See Accessories Tab for a partial listing or follow this link for a full listing)
- Five Year Extended Warranty
