The Powertron Breaker Series TBQCBM20 Tap Box (2000A) offers a molded case breaker and quick connection to a mobile emergency generator, allowing you to receive temporary power quickly and safely. UL1008 Listed.
FEATURES
- Emergency Power Ready: Makes your facility emergency power ready with load requirements, generator sizing and location, and cable lengths all pre-determined.
- Cold Weather Startup: GFCI 20A receptacle, 30A twistlock receptacle, and 50A twistlock receptacle allow power to be provided safely to a generator block heater and battery charger for cold weather operation.
- Automatic Startup: The Start/Stop terminals enable your mobile generator to standby to automatically restore power to your facility when using an Automatic Transfer Switch.
- Load Connection: Mechanical lugs on the Molded Case Breaker.
- Enclosure Conduit Entry: Many access points available for conduit entry including the bottom.

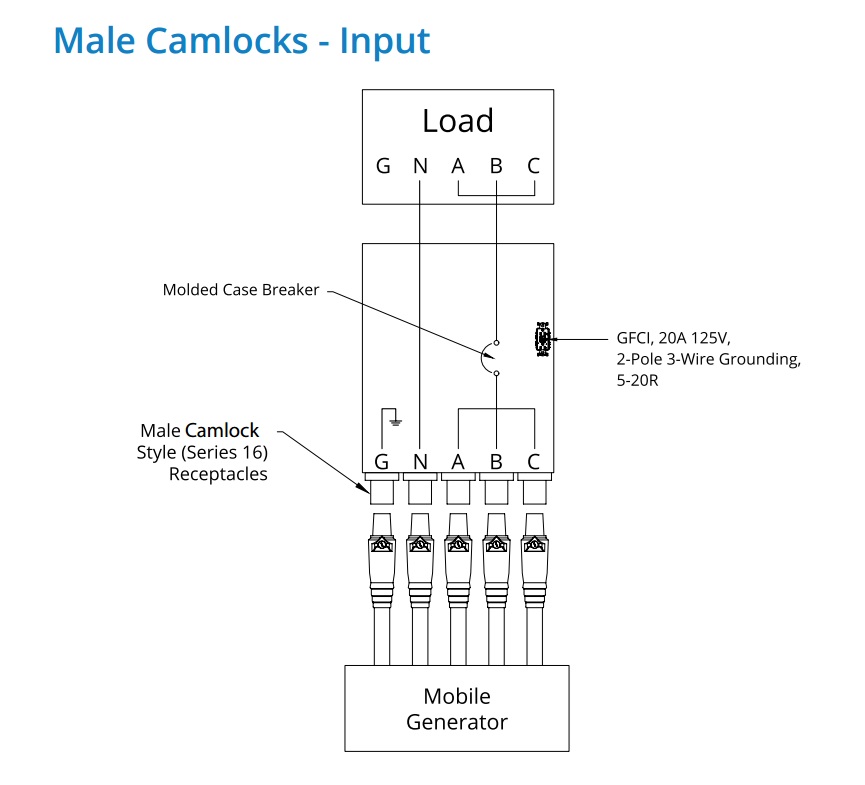

- Generator Connection: Series 16, 400A, 600V, male camlock receptacles (five sets of five).
- Breaker: 3-Pole Molded Case Breaker with Electronic Trip.
- Trapped Cable Door: Prevents cable disconnection by unauthorized personnel.
- Panel Door: Includes pad lockable handle for security and safety.
- Harsh Weather Protection: Pad-mount heavy-duty weather-resistant NEMA 3R outdoor enclosure. Choice of Steel or Stainless Steel.
- Eye Lifting Hooks: For easy moving and installation of the unit on a pad.
DOWNLOADS
Breaker Series 1200-2000A Tech Specs
Breaker Series 1200-4000A Manual
OPTIONAL FIELD ASSEMBLED KITS (See Below)
- Phase Rotation Monitor Kit
- Kirk Key Trapped Door Lock
OTHER OPTIONS
- Female camlock connections for load bank applications (see here)
- Generator Cable Sets (see below)
