Powertron Contractor Series 400 Tap Box (LB-400A, 1Ph)

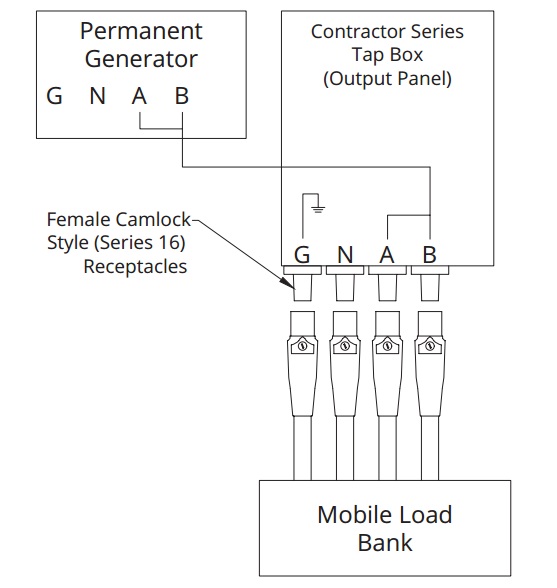

The Powertron Contractor Single Phase Series TBQCCF04 Tap Box (400A) allows you to quickly connect a 1PH 240V load bank to your permanent generator for testing. UL1773 Listed.

FEATURES

• Simple Design: A modest design that gets the job done.
• Generator Connection: Tin-plated copper bus bar.
• Enclosure Conduit Entry: Many access points available for conduit entry: top, back, and sides.
• Load Bank Connection: Series 16, 400A, 600V, female camlock receptacles (one set of three, no neutral).
• Trapped Cable Door: Load Bank cables can be removed only when the main door is open.
• Panel Door: Quarter Turn Twist Lock Handle (non-locking).
• Harsh Weather Protection: Wall-mount weather-tight NEMA 3R outdoor enclosure. Choice of steel or stainless steel.

DOWNLOADS

Contractor Single Phase Series 100-800A Tech Specs

Contractor Single Phase Series 100-800A Manual

Powertron Product Guide

Powertron Product Line

OPTION

• Type W 4/0 Cables with M/F Cams (see below)
