Powertron MTS Series Tap Box (1Ph, 100A)

This Powertron MTS Series TBQCMM01 Tap Box offers a single-phase 120/240V 100A manual transfer switch and quick camlock connections to a mobile emergency generator, allowing you to receive temporary power quickly and safely. UL1008 Listed.

FEATURES

• Emergency Power Ready: Makes your facility emergency power ready with load requirements, generator sizing and location, and cable lengths all pre-determined.
• Cold Weather Startup: GFCI receptacle allows power to be provided safely to a generator block heater and battery charger for cold weather operation.

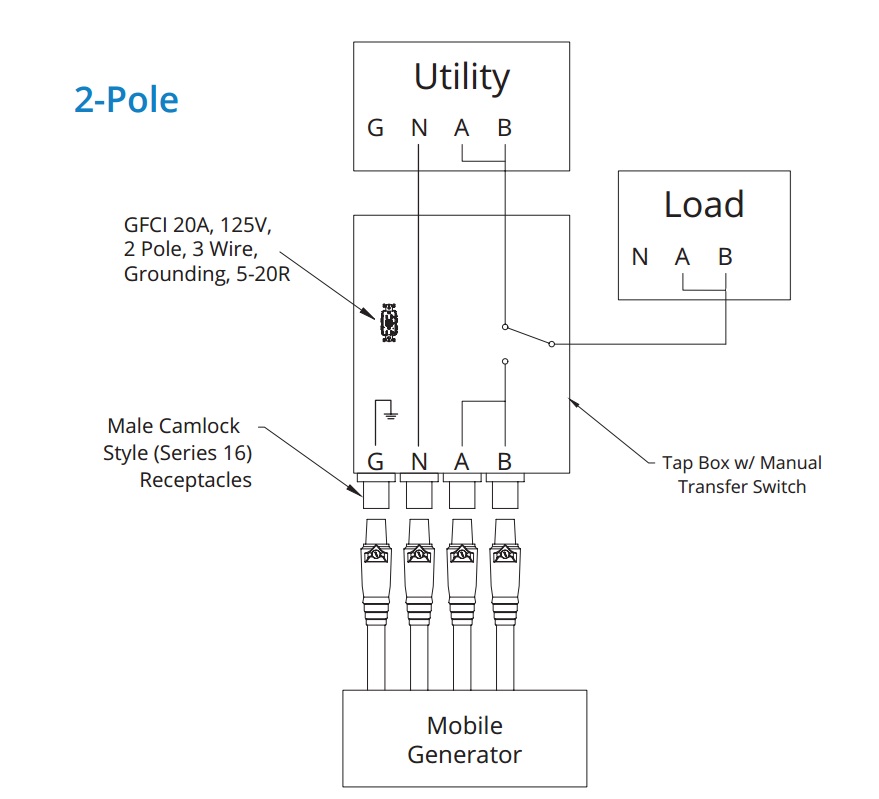

• Transfer Switch: 100A, 1-Phase, 2-Pole, 3-Wire, 60Hz, Solid Neutral.
• Load Connection: Mechanical lugs.
• Utility Connection: Mechanical lugs.
• Generator Connection: Series 16, 400A, 600V, male camlock receptacles (one set of five).
• Trapped Cable Door: Prevents cable disconnection by unauthorized personnel.
• Panel Door: Includes a key lock handle for security and safety.
• Harsh Weather Protection: Wall-mount NEMA 3R weather-tight outdoor enclosure. Choice of Steel or Stainless Steel.

• Uncompromising Quality: Engineered and assembled with the highest quality products from respected and leading manufacturers like Hubbell, Hoffman, and Burndy.

DOWNLOAD

TBQCMM01 Spec Sheet

Tap Box Brochure

OPTIONAL FIELD ASSEMBLED KITS (See Below)

• Phase Rotation Monitor Kit
• Kirk Key Mounting Kit


OTHER OPTIONS

• Matching Generator Cable Set (see below)
