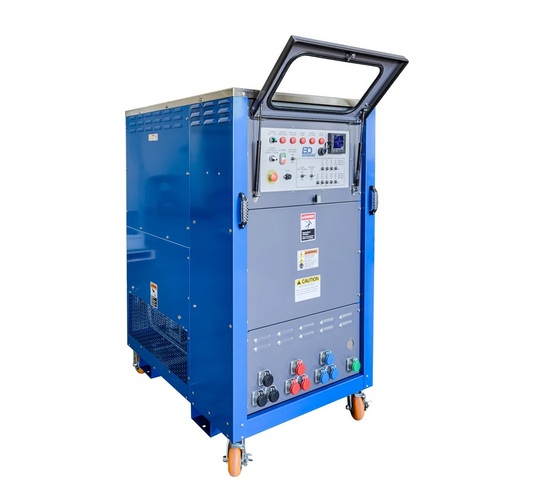

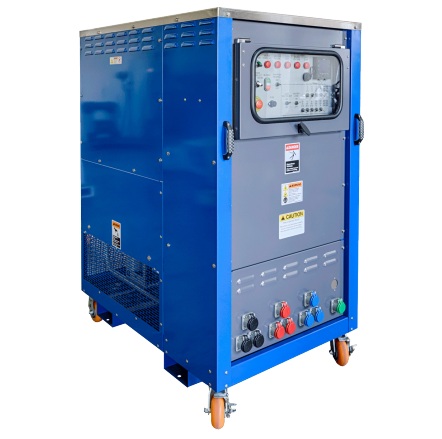

Trystar LP1000 Portable Load Bank (1000kW)

The Trystar LP1000 Portable Resistive Load Bank offers load capacities up to 10000 kW in a portable package.

FEATURES

• LP1000 Load Capacity: Up to 1000kW at 480VAC, 3-Phase, 60Hz.
• Full Load Amps at 1000kW: 1202 Amps at 480 VAC.
• Duty Cycle: Rated for continuous operation.
• Load Step Resolution: 10kW minimum at 480VAC.
• Controls: Main Power On/Off switch, Blower Start/Stop push buttons, Fan-Phase Reversal switch (ABC-OFF-ACB), Master Load On/Off switch and individual Load Step Switches (KW On/Off) provided for each load step.  Illuminated indicators provided for Power On, Blower On, Motor Overload, Air-Flow Failure, Over-Temperature, and Load Dump. Emergency Stop push button.
• Digital Power Meter (M): Fully equipped, 3-phase Digital Metering System that measures a standard range of 16 load parameters. Includes RS485 (Modbus protocol) for remote reading – compatible with PC, PLC, and data loggers.
• Control Power (T): From the the main input load bus via a control power transformer.
• Cooling Power: From internal main input load bus.
• Cooling System: Integrally mounted blower motor with high-performance, direct-driven fan blade delivers the required airflow volume (CFM) for cooling resistor load elements. Cooling airflow is drawn from the screened air-intake side, with hot air vertically exhausted from the top of the unit away from personnel.
• Load Elements: PowerDyne™ Resistor Load Elements provide the necessary KW load rating for each load step. Resistors are fully supported across their entire length within the air stream by stainless steel support rods which are insulated with heavy-duty, high-temperature ceramic insulators.
• Safety Features: Over-Temperature / Airflow failure protection. Fuses for short-circuit protection.
• Load Connections: Quick connect-disconnect color-coded male cam-type power connectors with protective snap-back covers. (4 per Phase, 1 Ground).
• Enclosure: Constructed of galvanized steel with powder coat paint finish. Heavy-duty caster wheels are provided for easy positioning and moving.

DOWNLOADS

Trystar LP1000 Spec Sheet (Coming Soon)

Trystar LP1000 Drawing

Trystar LP400-1000 Manual

Trystar Portable Load Bank Handout

Trystar Portable Load Bank Brochure

OPTIONS

• Trystar Series One Digital Controller (brochure).
• Trystar Protective Shipping Cage (drawing).
• Steadypower 20ft or 50ft Cable Set (see below to order).
