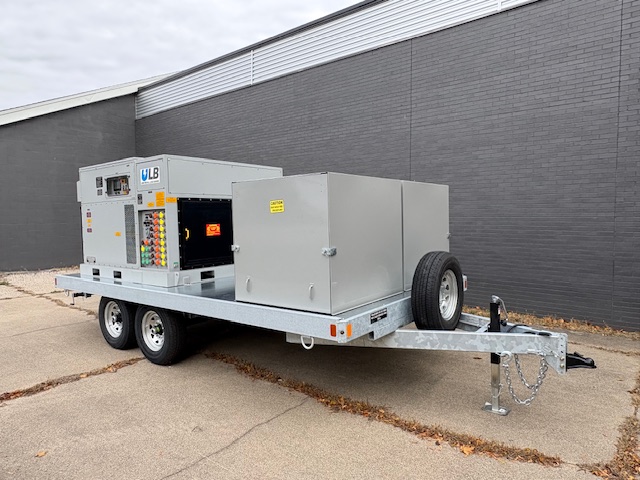

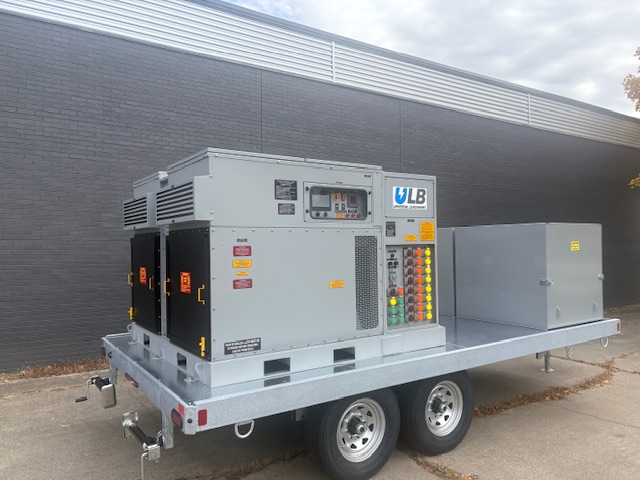

Our Universal R1250H Trailer-Mounted Resistive Load Bank Package offers a ULB 1250kW load bank, our heavy-duty trailer, our two cable reels with reel covers, and two 50ft cable sets.
ULB R1250H LOAD BANK FEATURES
- Load Capacity: 1250kW at 480 VAC 3PH 60Hz, 800kW at 240VAC 3PH 60Hz, and 600kW at 208VAC 3PH 60Hz.*
- Full Load Amps at 800kW: 1923 Amps at 240 VAC.
- Full Load Amps at 1250kW: 1502 Amps at 480 VAC.
- Duty Cycle: Rated for continuous operation.
- Load Step Resolution: 5kW at 240/480V.
- Controls: Local digital color touchscreen controller.
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: Control power via internal dual voltage transformer or from external 120V 1Ph source.
- Cooling Power: Blower power from connected load or external 480/240 3Ph source.

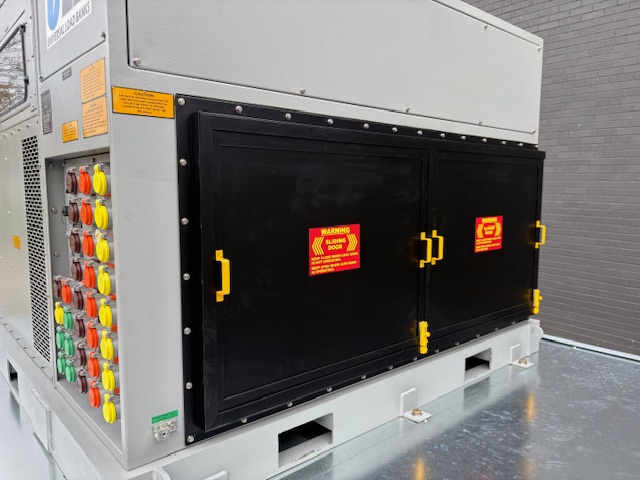

- Cooling System: Integral forced-air cooling system with horizontal airflow. Removable sliding covers with lock pins on air intakes and exhausts.
- Load Elements: ULB high-capacity chromium alloy load elements. Elements are fully supported with stainless steel rods and high temperature refractory ceramics for quick heat discharge.
- Safety Features: Over-temperature, over/under voltage, and cooling-air loss protection. Also includes a hard-wired emergency stop switch.
- Load Connections: Quick disconnect cam-type male connectors (9 per Phase, 5 Ground).
- Daisy Chained: Multiple load banks can be paralleled for higher load capacity, and operated from a single controller.
- Enclosure: Heavy gauge steel outdoor enclosure with powder coat finish. Designed to NEMA 3R standards for outdoor operation. Hinged access doors. Forklift pockets for easy mobility.
- *Note: Capacity rated up to 2,000 feet elevation from sea level. Please inquire for higher elevations.
STEADYPOWER SP2-9900-190×99 TRAILER FEATURES
- Trailer: Galvanized steel.
- GVWR: 9900 lbs.
- Bed Size: 190″ L x 99″ W.
- Axles: Tandem. Each axle rated 6,000 lbs.
- Tires: Four Wheel-Mounted Goodyears.
- DOT Approved: Lighting and 7-pin Electrical Connections.
- Brakes: Electric.
- Hitch: Choice of Ball or Pintle Hitch.

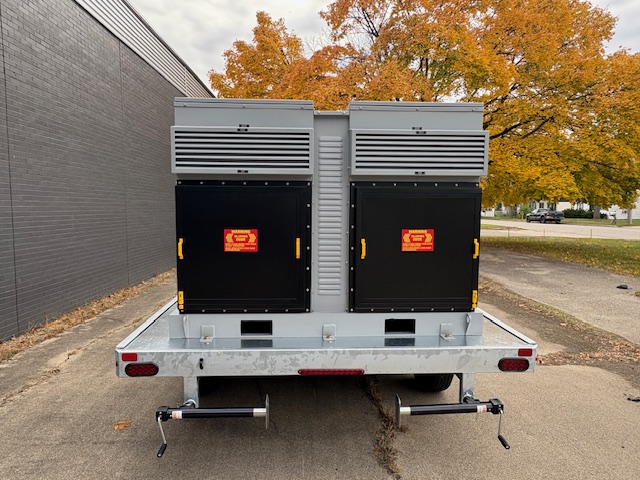

- Jacks: One 7000-lbs Front Tongue Jack and Two Rear Swing-up Stabilizer Jacks.
- Safety: Chains and Hooks.
- D-Rings: Four Heavy-Duty.
- Spare Tire: Mounted Goodyear.
STEADYPOWER SP-HRXECV-115VAC-1250 CABLE REEL FEATURES
- Linear Feet Capacity: Each reel holds up to 1250 ft of 4/0 cable.
- 50ft Cables Capacity: Each reel holds up to twenty-five 50ft 4/0 cables with cams.
- Unwind/Rewind: 115VAC Electric motor with variable speed control and rocker switch.
- Brake: Bearing mounted strap brake.
- Hand Control: Enhanced push button switch.
- Bonus Foot Control: Foot switch with 15ft connection cable (up to two provided per trailer).
- Electric Cable: 25ft cable to plug into a common 120V outlet.
STEADYPOWER SP-LREL12 CABLE REEL COVER FEATURES
- Door: Open upwards with gas-assisted vertical lift.
- Security: Doors have hasps for customer-supplied padlocks.
- Enclosure: Steel with stainless steel fasteners and vents.
- Paint: Heavy-duty primer and powder-coating.
STEADYPOWER LB2800A-25-W40-50-OYBG CABLE SET FEATURES
- Number of Sets Included: Two.
- Number of Cables per Set: Twenty-five (7 per phase, 4 ground).
- Cable Length: 50ft. (Two sets offer a total of 100ft length).
- Cable Specs: 4/0 Type W single conductor flexible cable with color-coded male and female cams
- Cam Colors: Orange, Yellow, and Brown for each phase, Green for ground.
